Quality Infrastructure

QUALITY POLICY

Our goal is to manufacture and supply machined components to the satisfaction of our customers.
We will achieve this by:

  • Understanding the needs of our customers,
  • Meeting customer expectations of quality and delivery,
  • Doing continual improvement in Quality Management System and manufacturing activities,
  • Satisfying all applicable requirements,
  • Establishing and reviewing quality objectives at functional level.
ISO accredited company since 2003  ISO 9001:2015  compliant Certification through TUV Nord
ISO Nikash-CNC-Engineers

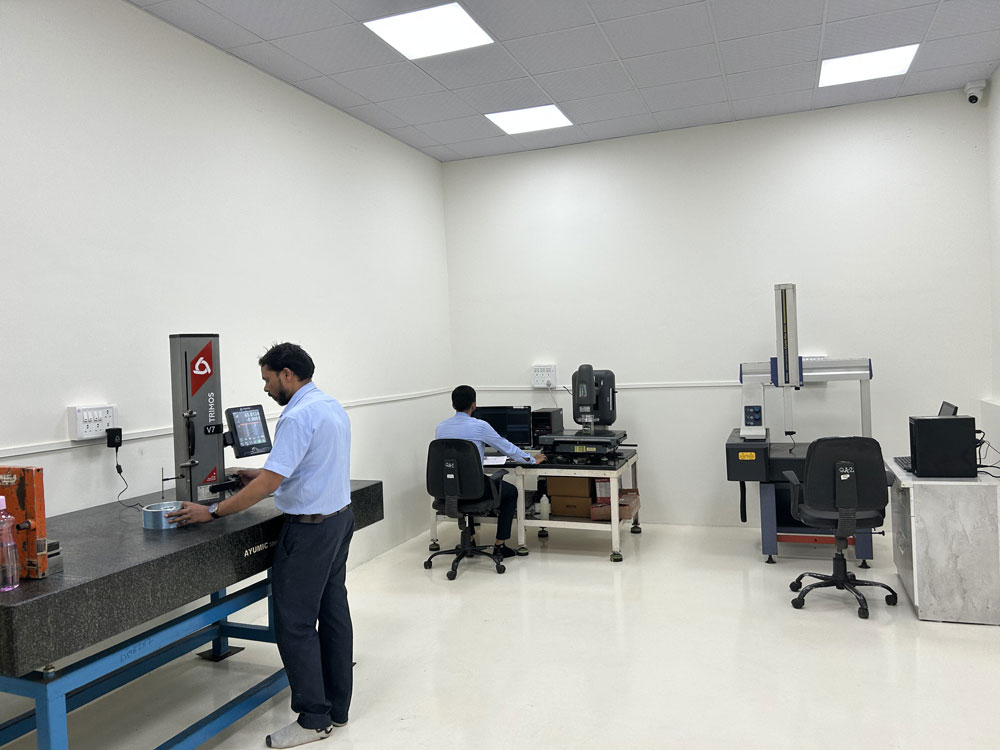

TRIMOS, CMM & MEASURING INSTRUMENTS
trimos
nikashcnc-CMM-machine
inspection-gauges
Metrology
  1. Full range of measuring instruments

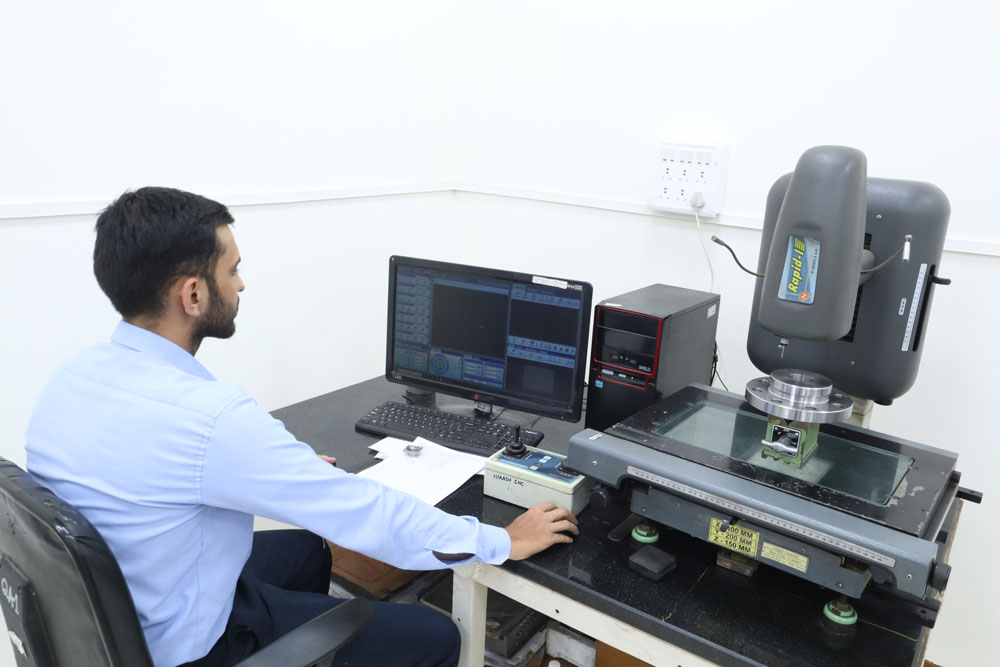

  2.  CMM with added Vision based inspection
  3. Trimos – 2D Height Gauge
  4. Profile projector
  5. Hardness Tester
  6. Roughness Tester
Metrology
Measuring Instruments : NIKASH CNC ENGINEERS PVT. LTD
 No Machine Description Name of Manufacturer Specifications Year Of Manufacturer  QTY
1. Mitutoyo CMM Model – Crysta – Plus M443 Measuring Range: 400×400×300 mm (X/Y/Z)
Accuracy: (3.0 + 4L/1000) µm
Resolution: 0.0005 mm
Max Workpiece Weight: 180 kg
Table Size: 624 × 805 mm (granite)
Machine Size: 981 × 1047 × 1967 mm
Machine Weight: 410 kg
Air Supply: 0.35 MPa, 50 L/min consumption		 2016 1
2. CMM- V2015J LX Customized Technologies Range: X= 400 Y= 200 Z= 150 mm Least Count: 0.0001 mm 2013 1
3. Profile projector Aura Equipments Horizontal Beam type Screen: 350mm Dia. Zoom Cap: 10X 25X 50X 1996 1

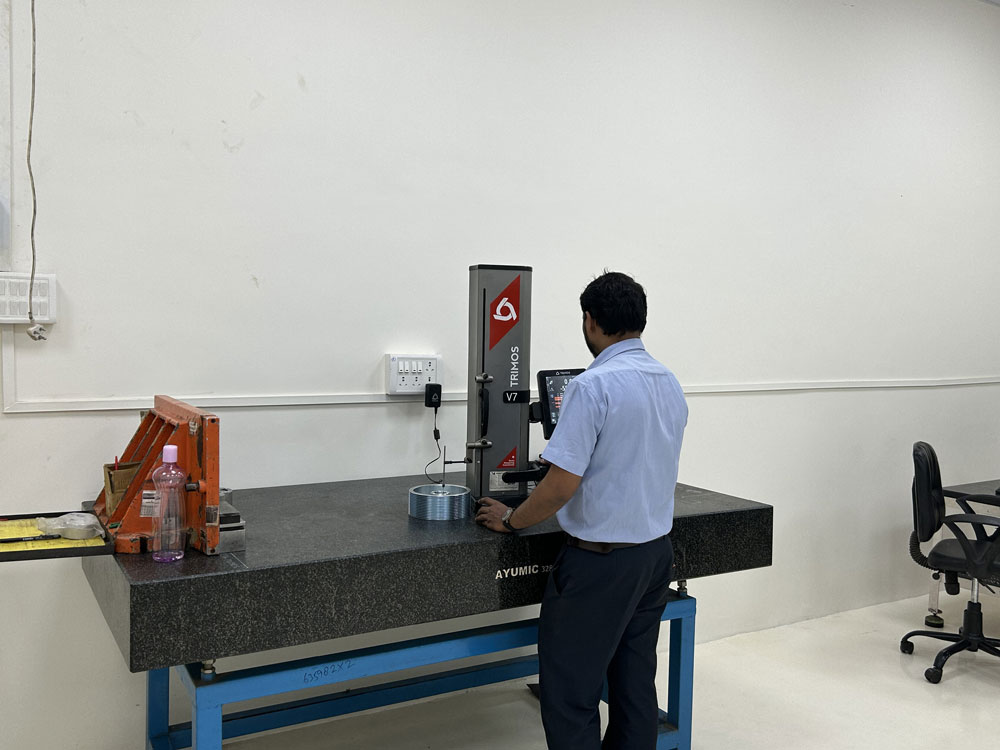

4. Digital Height Gauge- V7-400 TRIMOS Measuring Range: 710mm Least Count: 0.0001mm Air cushion maneuverability Digital Touch Display 2018 1
5. Mech Comparator Spinn India Capacity: 10-130mm (OD) 40-120mm (ID) – 16
6. Roughness tester- SJ-210 Mitutoyo Stroke: 17.5 mm Meas. Range: (360µm / 0.02µm) 2018 1
7. Hardness tester- TRS FTM Max Test height 216 mm Range: 80HRC 1995 1
8. Dial Bore gauges Mitutoyo Range(mm): 6.0-10.0, 100-150, 10-18.5, 18-35, 50-100, 160-250 – 8
9. Surface plate GMT / AYUMIC Sizes(mm x mm): 630 x 400,
630 x 630,
1000 x 2000		 2019 3
10. Bench Centre Micro flat Capacity: 300mm 2008 1
11. Slip Gauge Set Kalibre Capacity: 0.5mm – 100mm No of pieces: 83 2005 2
12. Vernier height gauge Aditya Measuring Range: 300mm Least Count:0.02mm 1995 1
13. Digital Height Gauge Baker Measuring Range: 325mm Least Count:0.01mm 2008 1
14. Digital Vernier Baker & Insize Range: 0-200mm, 0-300mm – 19
15. Mechanical Vernier – Range: 0-600mm 2003 1
16. Sine Centre –   Range: 280mm between center 1998 1
17. Dial Snap Gauge –   Range: 200-225mm, 225-250mm 2024 2
18. Plunger Dial BAKER   Range : 0.01 / 10 mm , 0.001 / 1 mm 41
19. Mitutoyo –   Range : 0.01 / 8 mm , 0.001 / 0.14 mm 9
20. RADIUS GAUGE –   Range : 1MM-7MM 2
21. Bore Gauge Mitutoyo   Range : 10MM-18MM,
Range : 15MM- 35MM,
Range : 35 MM- 60 MM,
Range : 50MM-150MM,
Range : 160MM-250MM,		 16
22. Micrometer Baker & Mitutoyo   Range : 0MM- 25MM,
Range : 25MM- 50MM,
Range : 50 MM- 75 MM,
Range : 75MM- 100MM,
Range : 100MM- 125MM,
Range : 100MM- 200MM,
Range : 150MM- 300MM		 – 21
23. Thread Ring Gauge Samarth & Finiks  – – 135
24. Thread Ring Gauge Samarth & Finiks   – – 82
25. Plug Gauge Samarth & Finiks   – – 93
26. OD Master Samarth & Finiks     – – 20
